Powerful Features for Smarter Gear Design
Everything you need to design, calculate and automate gear design, in one cloud-based platform.
Accurate Gear Profile Generation
From parameters to precise profile.

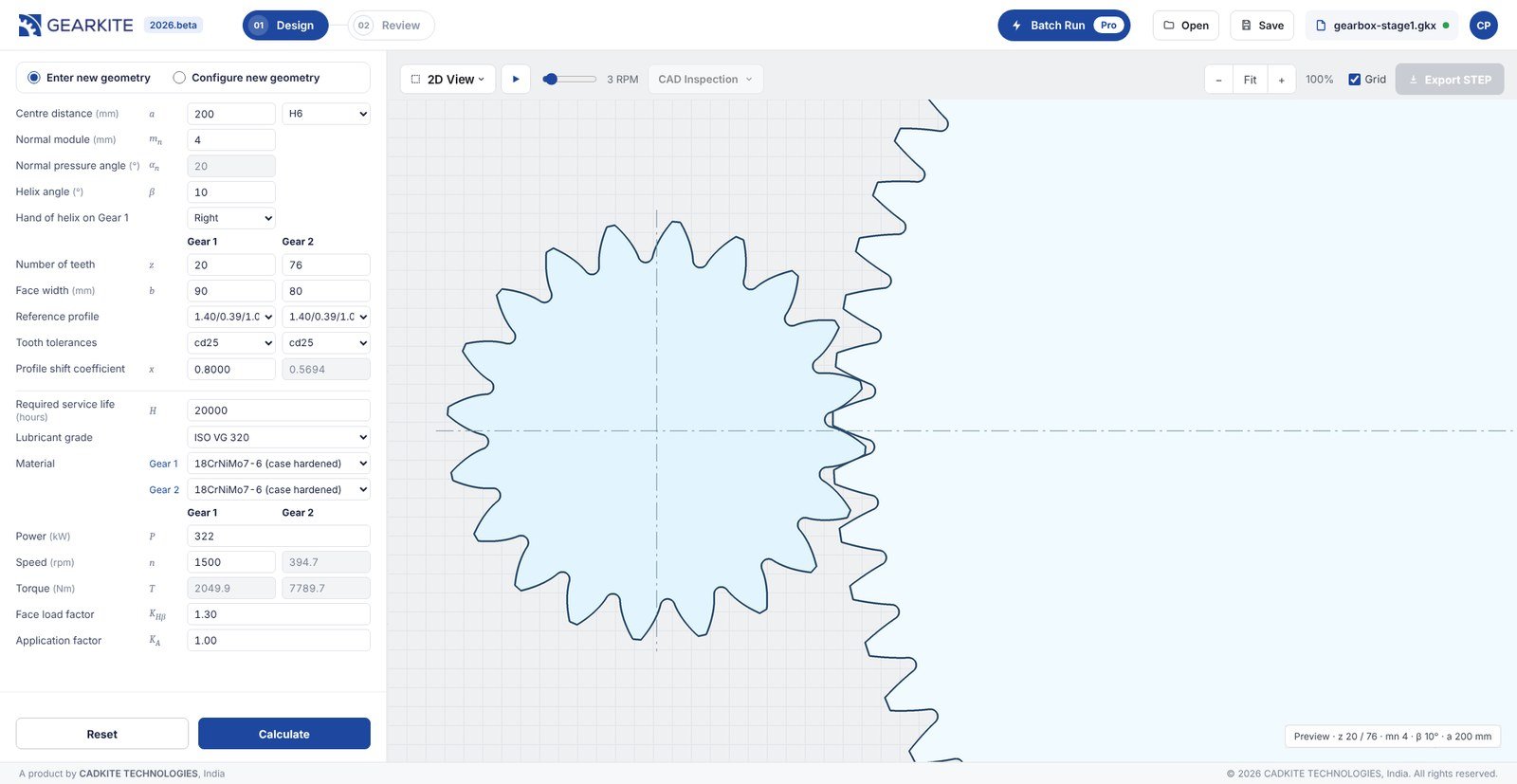

Define spur and helical gear pairs by centre distance, normal module, pressure angle, helix angle, number of teeth and face width. Set the profile shift, reference profile and tooth tolerances, and inspect the meshing pair in 2D or 3D.
- Spur & helical gear geometry
- Profile shift coefficient per gear
- Reference profiles & tooth tolerances
- 2D / 3D views with CAD inspection
Faster Design Process
Less switching, more designing.

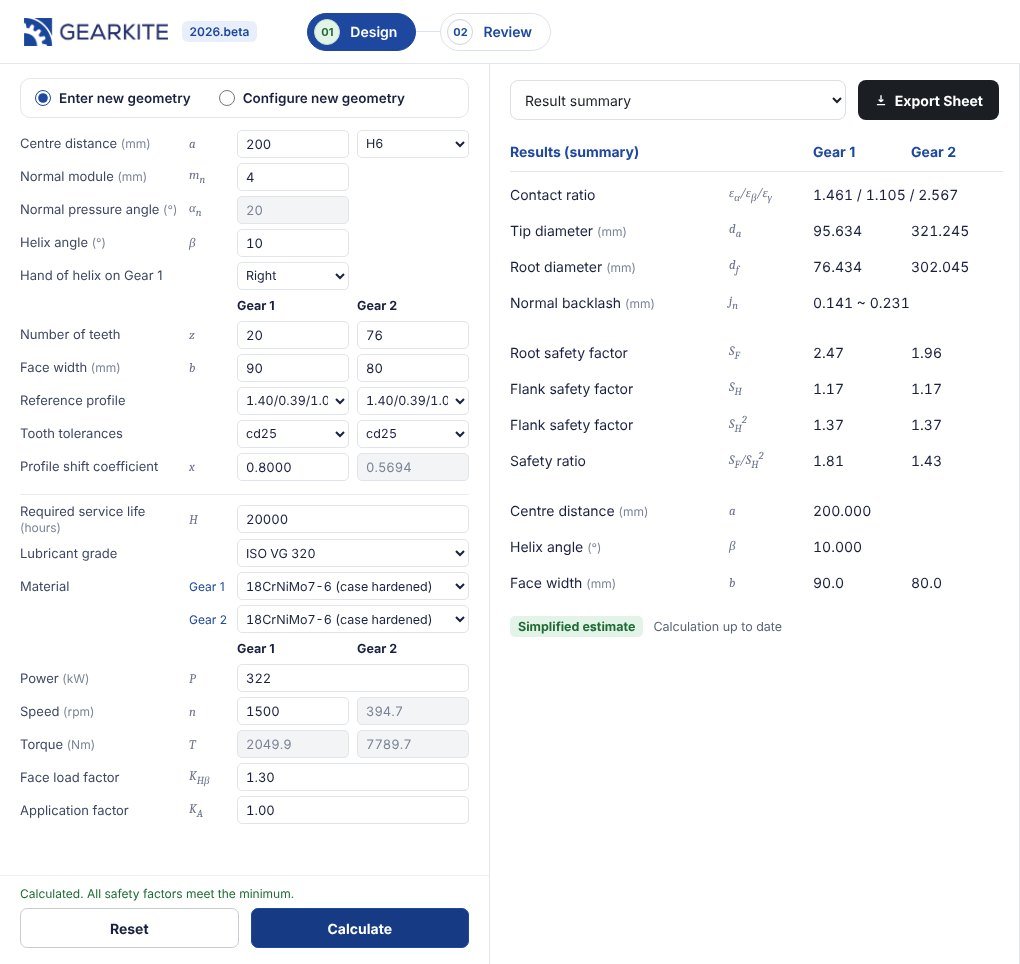

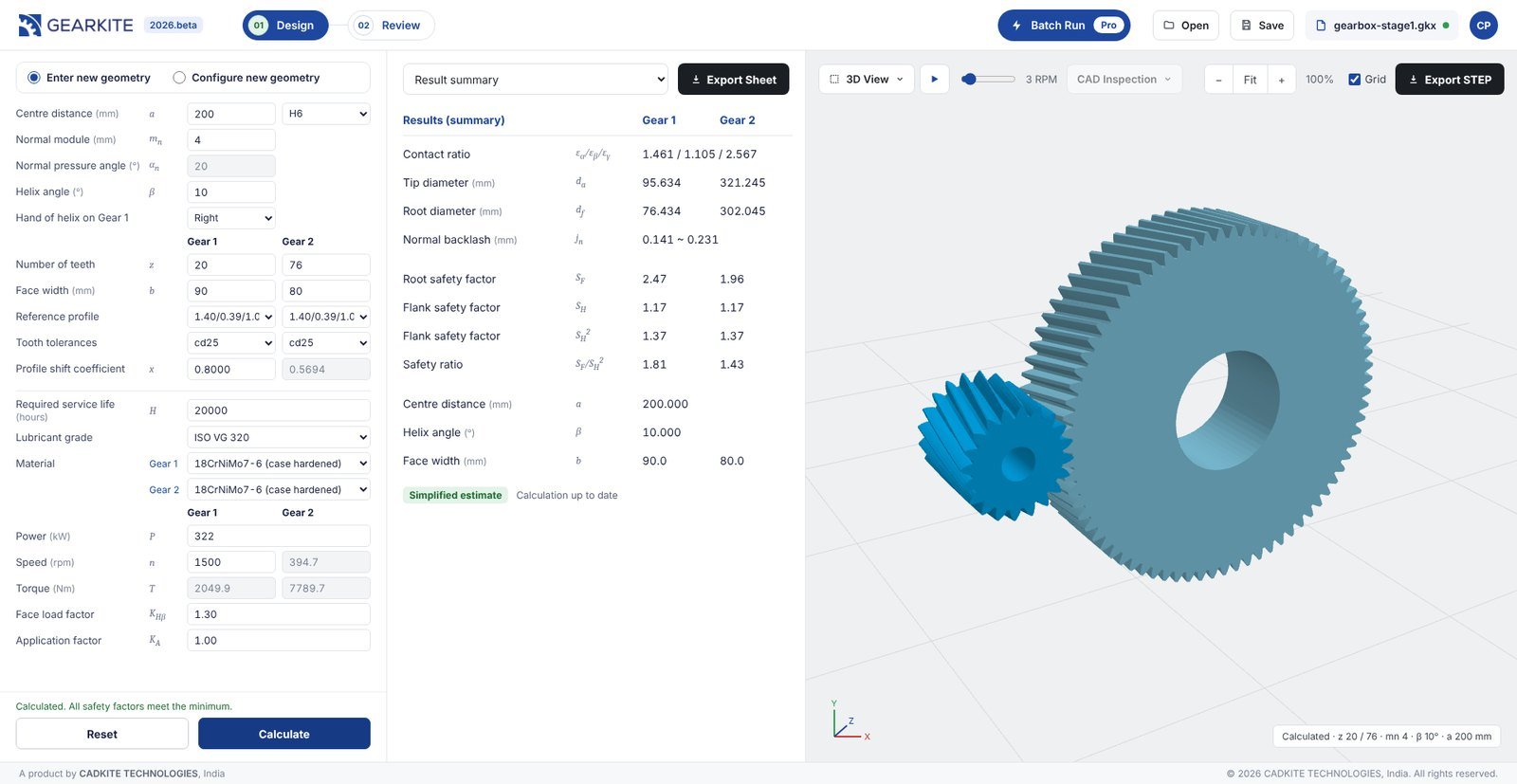

Geometry and strength live side by side in one screen. Enter the load case (power, speed, service life, lubricant, material and load factors), click Calculate and the results summary updates instantly. Save each design as a project file, reopen it any time, and switch to Review for a clean, full-width look at the results.
- Geometry & strength in one view
- ISO 6336:2019 calculation method
- Save & open project files
- One-click sheet & STEP export
Manufacturing-Ready Data Tables
Reliable data for real-world production.

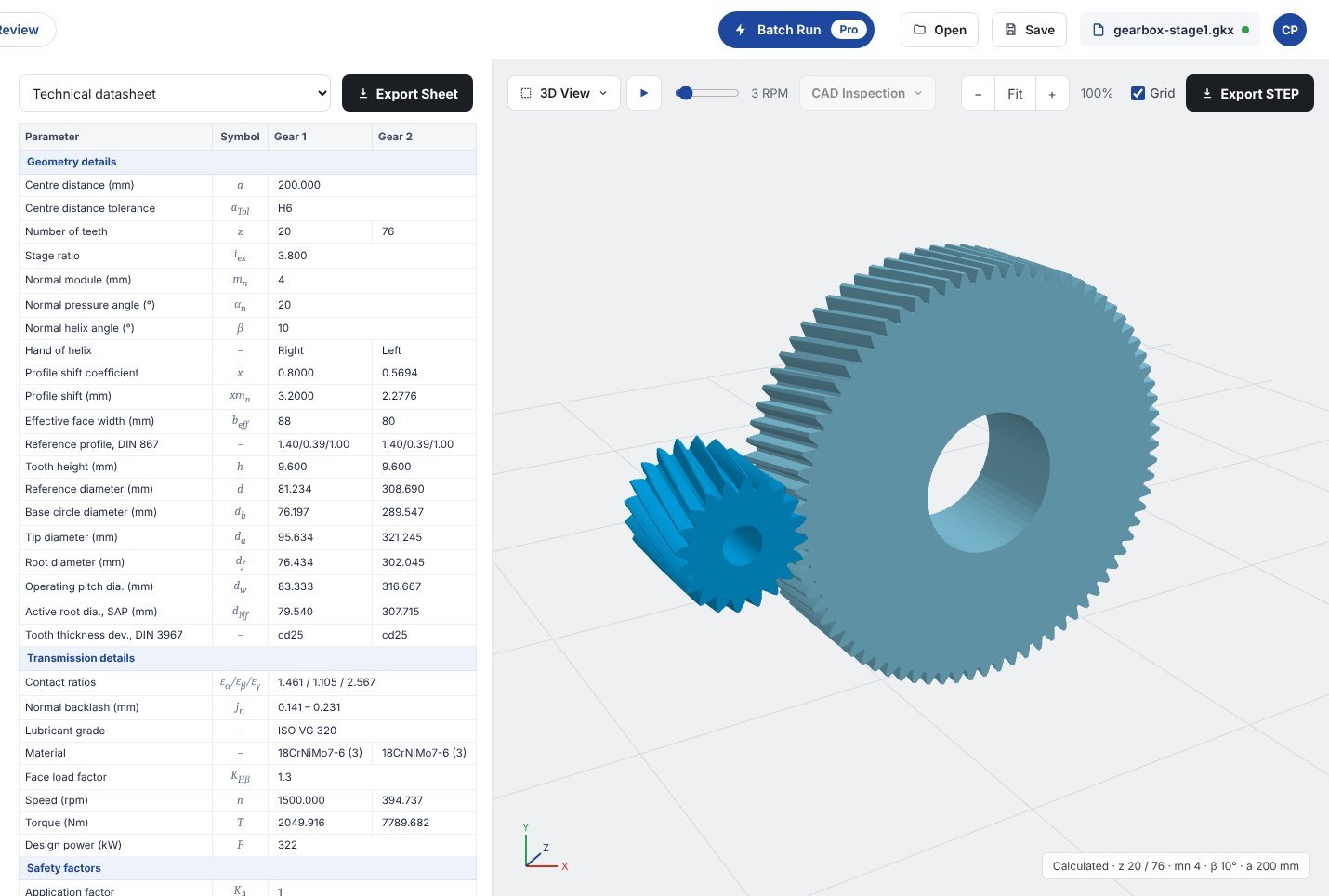

Turn calculated gear designs into structured engineering data. Switch between the result summary, the drawing table and the technical datasheet. Every value, from tip and root diameters to base tangent length, over-pins dimensions and safety factors, is laid out per gear and exports to a spreadsheet without retyping.
- Drawing table & technical datasheet
- Base tangent length & over pins
- Root & flank safety factors
- One-click Excel export
2D / 3D Gear Design Export
Seamless transition to your CAD workflow.
Generate accurate gear geometry directly from your calculated design. Export 2D drawings, 3D models and standard file formats to integrate with your downstream engineering and manufacturing processes.
- 2D drawings (PDF / DXF)
- 3D models (STEP / IGES / STL)
- CAD-ready geometry
- Custom export settings
Gear Geometry Configuration & Sizing
Design with requirements, not just geometry.

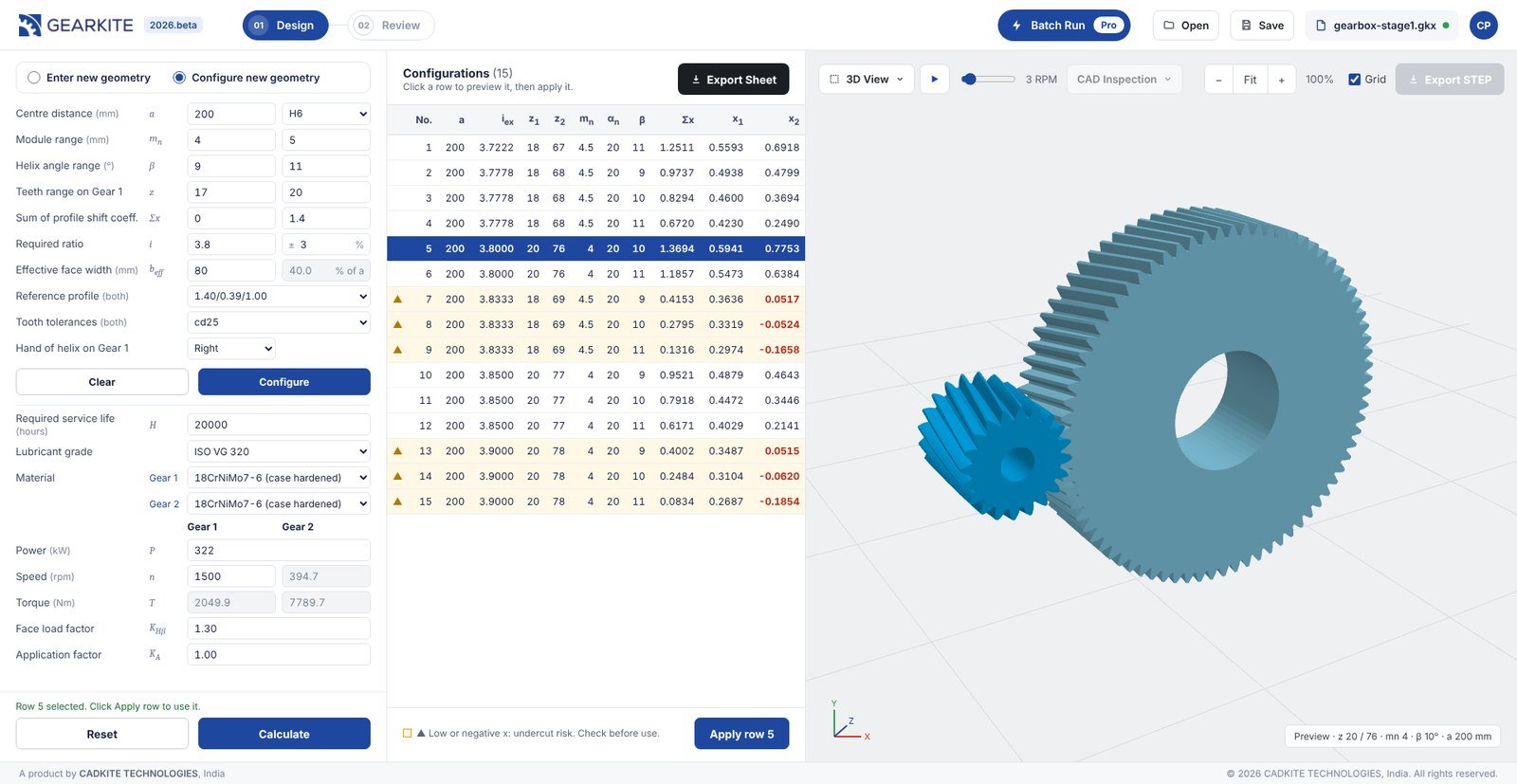

Start from your constraints instead of a fixed geometry. Enter the centre distance, required ratio and ranges for module, helix angle, teeth and profile shift. GEARKITE generates every valid configuration, and one click applies the one you choose to your design.
- Range-based configuration search
- Ratio tolerance & centre distance
- Undercut-risk warnings
- Export configurations to a sheet
Batch Design Automation
More designs. Less effort.

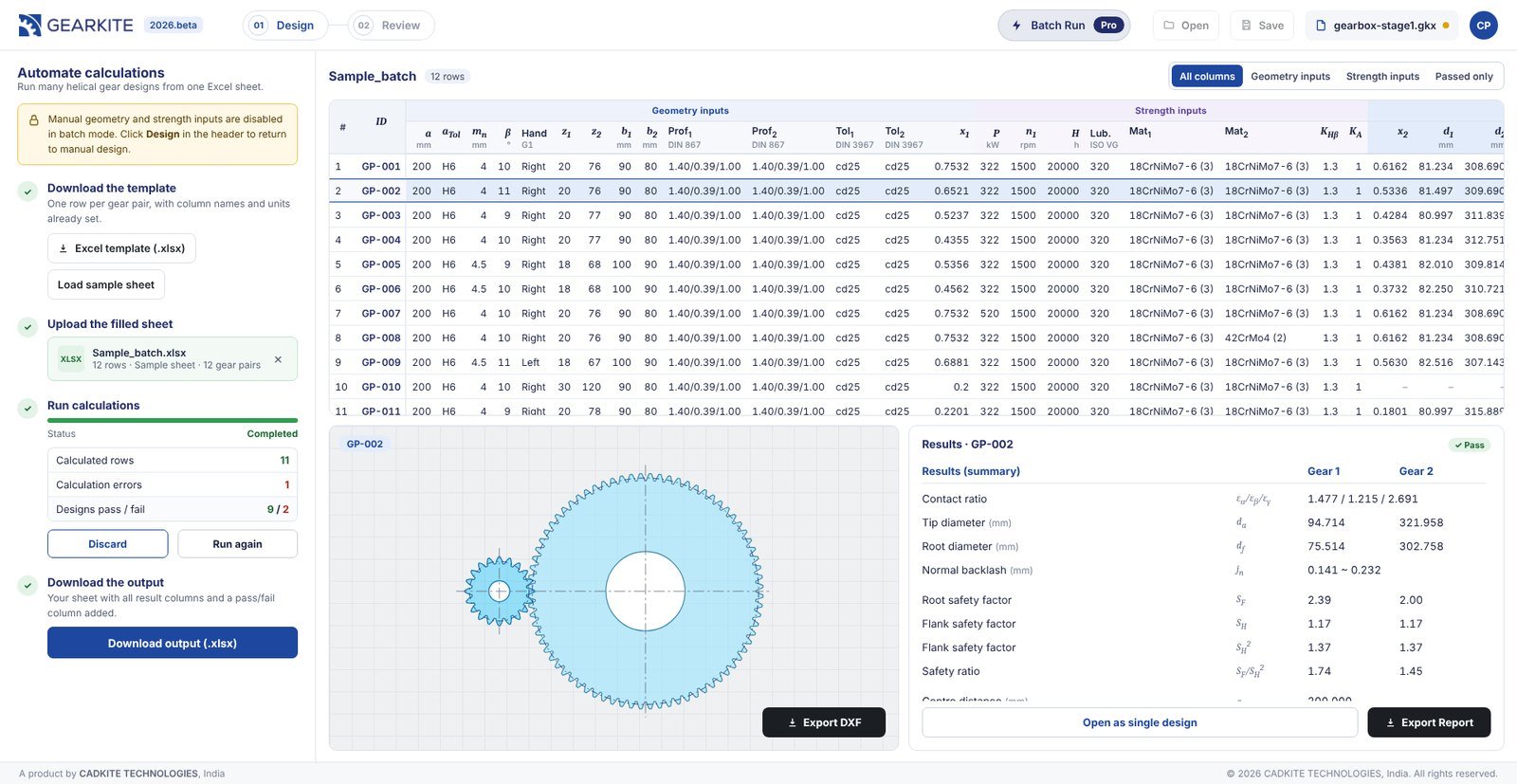

When one design becomes dozens of design cases, Batch Mode lets you upload them as an Excel sheet, run them all automatically and review the results side by side. Save hours of repetitive work and focus on making the right design decisions.
- Upload design cases from Excel
- Geometry & strength in one run
- Pass / fail for every design
- Download results as a sheet
Experience GEARKITE for yourself
See how quickly you can move from gear requirements to calculated, validated and exportable designs.
